PDR IR – Rework
The PDR rework system, thanks to the patented Focused IR technology, has been specifically designed to meet the new challenges of reworking various types of components.
Not using GAS or HOT AIR allows reworking components of various types and sizes to be reworked whilst positioned very close together.
It does not require dedicated nozzles or tools for each component and the size of the area to be reworked can be adjusted.
It ensures excellent process control thanks to the use of dynamic profiles (the software adjusts the IR source power based on what the component and PCB temperature sensors detect).
The passive nature of infrared heat significantly reduces the risk of damage to PCB components compared to other systems that operate with hot gases, allowing you to pass your hand through without getting burned.
The very flexible and user friendly software allows even inexperienced operators to quickly achieve good results, a distinctive feature of PDR.
PDR systems are easily configured to respond to every request and are easily upgradeable, choose the one that best suits you:

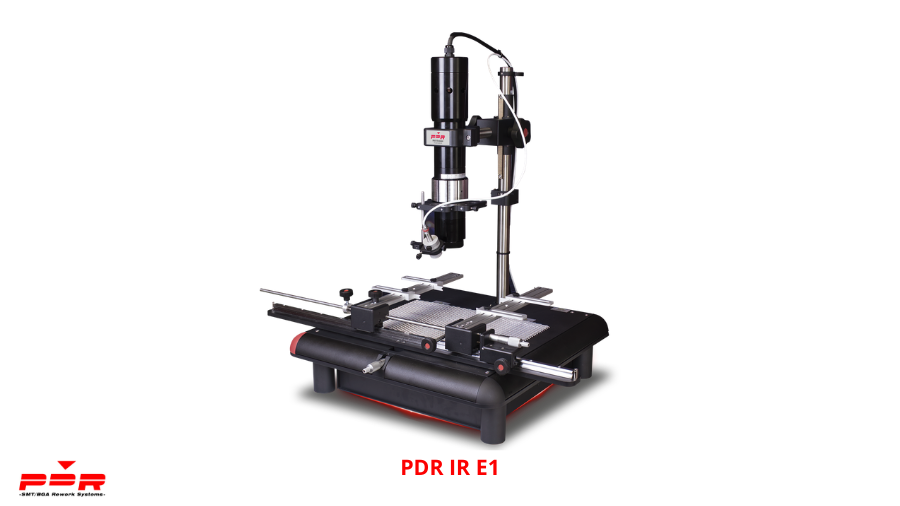

- PDR IR-E1 BGA Rework Station – IR preheating for MANUAL rework

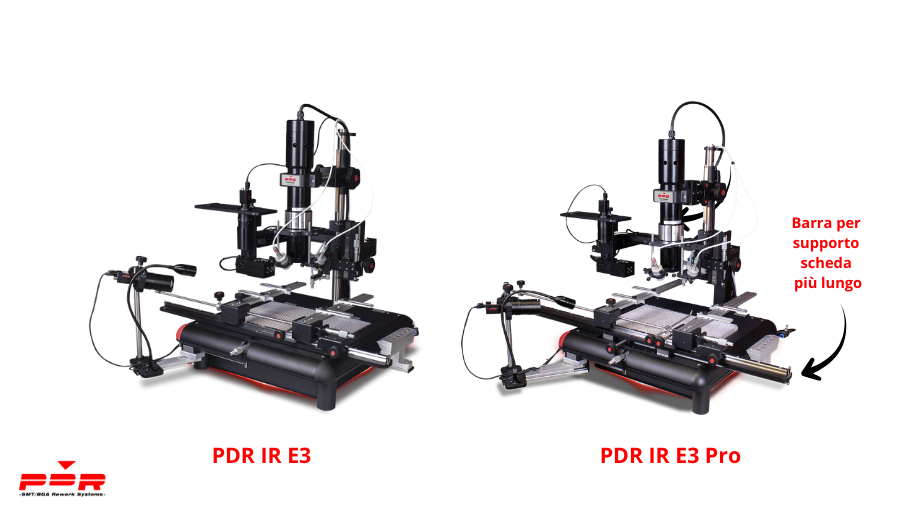

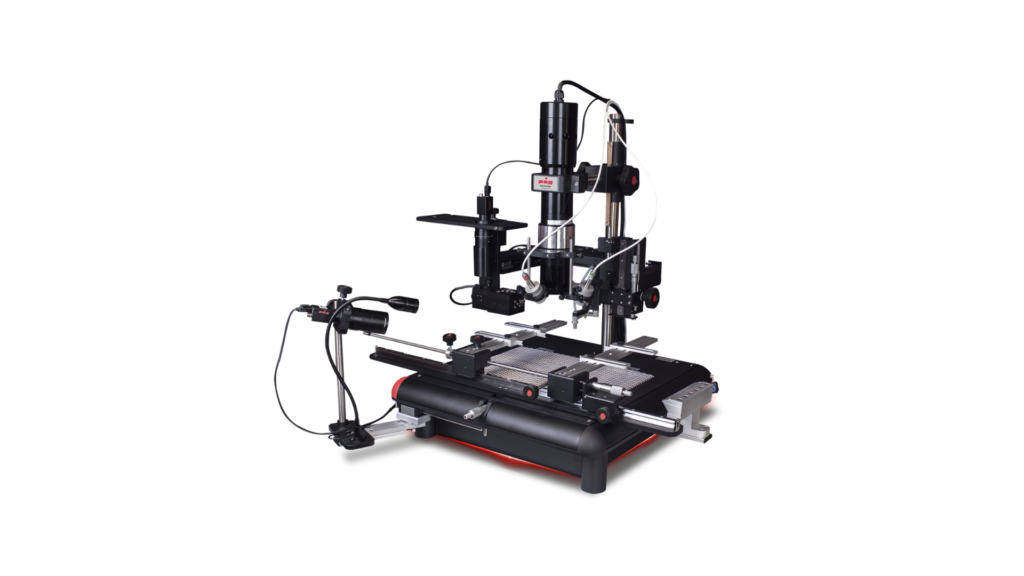

- PDR IR-E3 BGA Rework Station – IR preheating with an assisted system for component removal and placement
- PDR IR-E3 PRO BGA Rework Station – E3 system with a larger IR preheating zone for larger boards

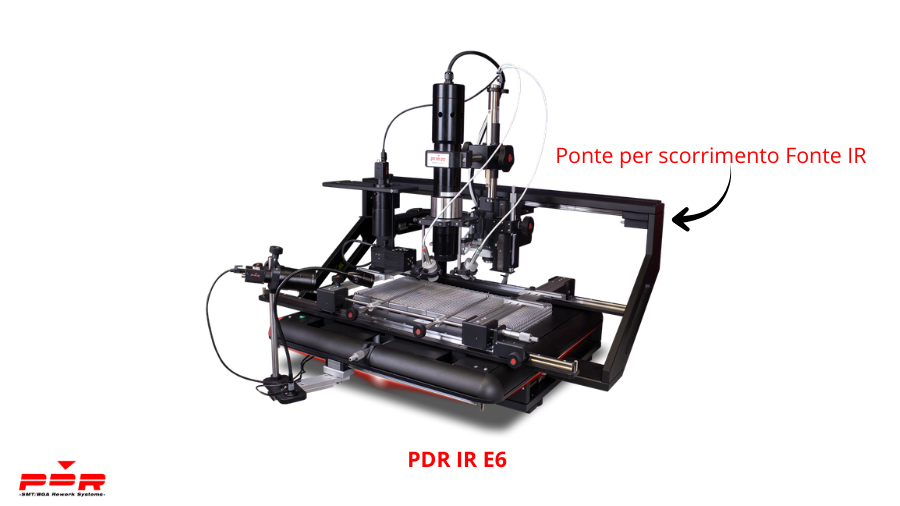

- PDR IR-E6 BGA Rework Station – Even larger IR preheating zone

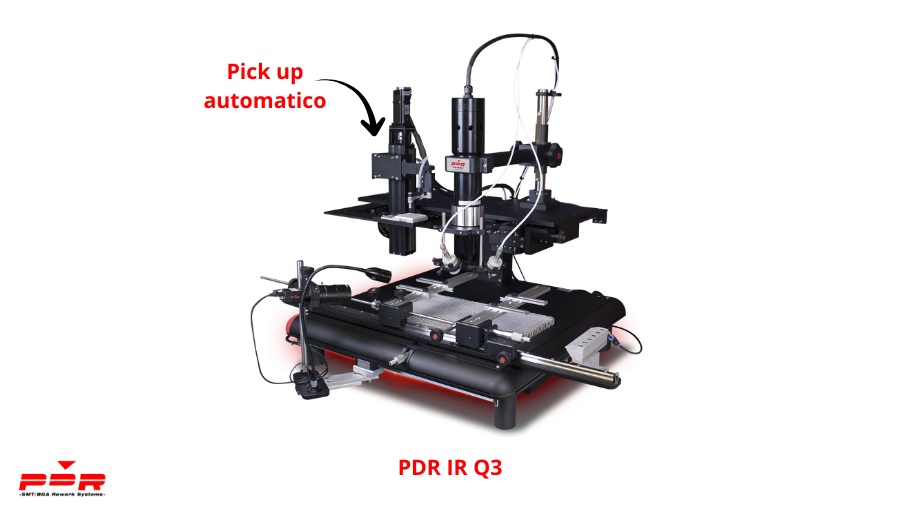

- PDR IR-Q3 BGA Rework Station – System with automatic component placement and removal
